Not all solar street lights are built the same. Some fade too fast. Some break under weather. Others simply don’t deliver enough light. The Leona Solar Street Light from Mason was designed to end those compromises.

With a powerful LED engine (up to 120W), a long-life LiFePO4 battery, and a corrosion‑proof ADC12 aluminum housing rated IP66 and IK08, Leona is ready for roads, parking lots, parks, farms – and everything in between. It’s solar lighting you can rely on, year after year.

Leona Solar Street Light – clean, powerful, and completely off-grid.

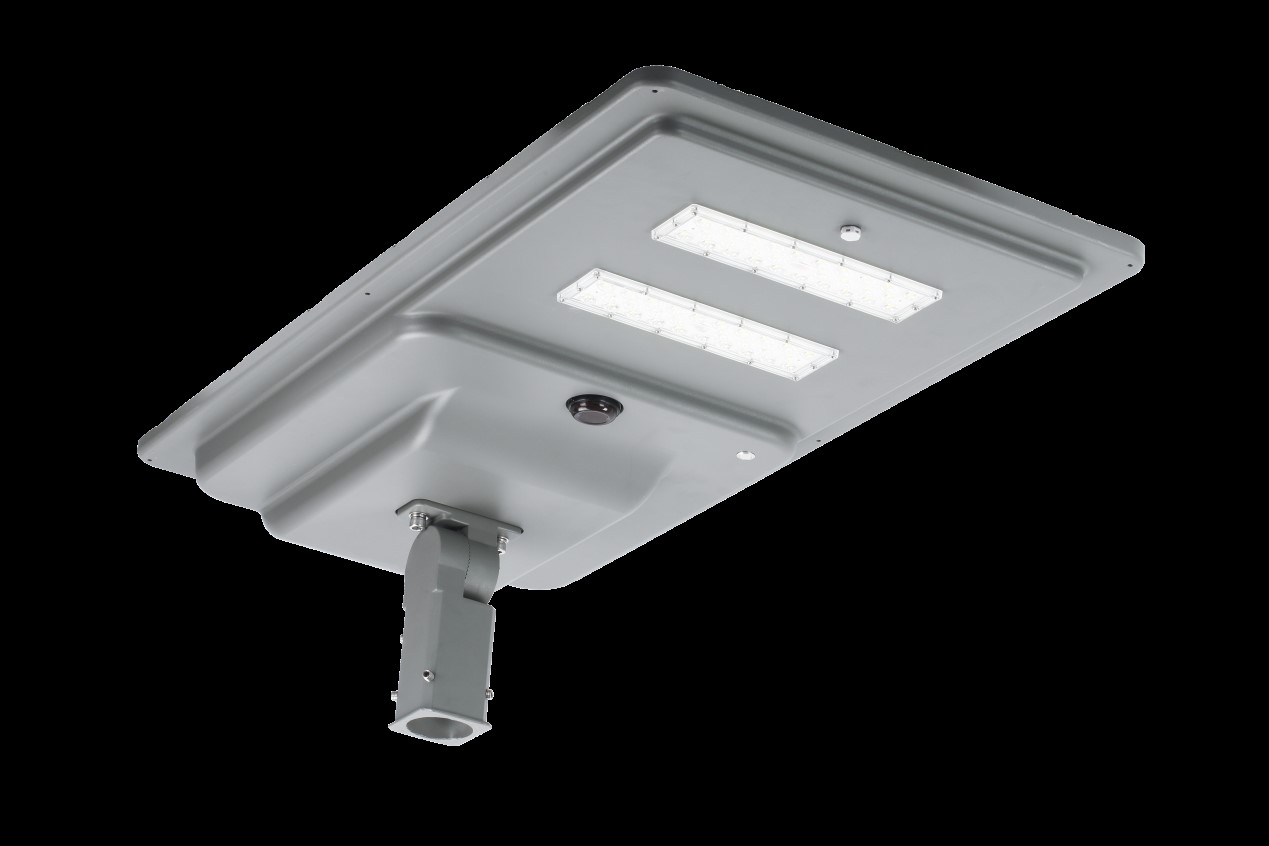

*ADC12 die-cast aluminum housing with duck grey powder coat finish, rated IP66 and IK08.*.

Why Leona Stands Out?

Pure Solar, Pure Freedom

Leona is a complete off‑grid lighting solution. No trenching, no cables, no electricity bills. Just clean, silent, automatic illumination every night. The monocrystalline silicon solar panel charges the battery during the day, and the intelligent controller turns the light on at dusk, off at dawn.

Genuine LiFePO4 Power – DISON IFR26650

Many solar lights cut corners on batteries. Leona uses a totally new DISON IFR26650 LiFePO4 battery pack – a professional grade cell known for safety, cycle life, and thermal stability.

1. 8V system voltage
2. Capacities from 6.5Ah up to 51Ah (depending on model)
3. 2–3 days autonomy(backup for rainy/cloudy days)
4. Lightweight, maintenance‑free, and fully recyclable

Built Like a Tank – But Looks Sleek

The housing is ADC12 die‑cast aluminum with a duck grey powder coat finish (custom colors available). It’s non‑corrosive, heat‑dissipating, and tough.

1. IP66– dust‑tight and protected against powerful water jets
2. IK08– impact resistant (2 joules) – survives hail, stones, and vandalism
3. Operating temperature-20°C to +50°C – works in most climates.

Brilliant Light – Up to 160 lm/W

Leona uses BridgeLux 5050 LED chips (28 pieces per module) with a metal‑core PCB for superior heat management.

1. Luminous efficacy: >160 lm/W
2. L70 lifespan: 100,000 hours @ 25°C – that’s over 22 years of nightly use
3. CRI (Ra): >70 – good color rendering for safety and visibility
4. CCT options: 2700K (warm) to 6500K (cool white) – choose what fits your environment

Precision Optics – Type II, III, or IV

Light distribution matters. Leona offers three standard optical types:

1. Type II – ideal for wider walkways and bike paths
2. Type III – standard for roadways and parking lots (medium throw)
3. Type IV – wide, forward-throw for large areas like plazas and intersections

Smart Control That Saves Energy

Microwave & PIR Sensor Ready

You can equip Leona with a microwave motion sensor (or PIR). The sensor detects people or vehicles and adjusts brightness automatically. This dramatically extends battery runtime while maintaining security.Advanced Optical System.

Example dimming profile (fully programmable):

Detection Range

Horizontal angle: up to 100°

Detection distance: 6–10 meters (height dependent)

Radial coverage: 14–22 meters

Charge Controller – PWM or MPPT

Leona supports both PWM and MPPT charge controllers (depending on configuration). The system ensures battery health with overcharge, over‑discharge, and reverse polarity protection.

Technical Specifications at a Glance

360° Adjustable Design

The solar panel and light head can be rotated a full 360°. You can mount Leona vertically or horizontally – perfect for poles, walls, or custom structures. No more compromises on sun orientation.

Common specs for all models:

1. Charging time: ~6 hours (full sun)
2. Backup autonomy: 2–3 days
3. Warranty: 5 years
4. Protection: IP66 / IK08
5. LED chip: BridgeLux 5050
6. Operating temperature: -20°C ~ +50°C

Where Can You Use Leona?

Leona’s versatility makes it suitable for:

1. Residential roads & community streets – quiet, safe, no light trespass
2. Parking lots & garages – wide Type III or IV optics cover rows of cars
3. Parks & public squares – warm white option creates a pleasant atmosphere
4. Municipal infrastructure – reliable, low maintenance, 5‑year warranty
5. Agricultural lighting – for farmyards, livestock areas, and aquaculture ponds
6. Campus & pathway lighting – easy installation between buildings

Frequently Asked Questions (FAQ)

Q1: How long does the Leona battery last before replacement?
The DISON LiFePO4 battery is rated for over 2000 cycles at 80% depth of discharge. With nightly operation, you can expect 7–10 years of service – much longer than lead-acid batteries.

Q2: Can I use Leona in very cold climates?
Yes. Operating range is -20°C to +50°C. LiFePO4 chemistry performs better than lead-acid in cold temperatures. For extreme cold (< -20°C), contact us for a customized solution.

Q3: What happens on several rainy days?
Leona provides 2–3 days of autonomy (backup runtime without sun). With the microwave sensor and dimming schedule, you can stretch that to 4–5 days by reducing brightness during low-traffic hours.

Q4: Is the solar panel angle adjustable after installation?
Yes. The 360° rotation allows you to orient the panel toward the sun (south in the northern hemisphere, north in the southern) even after mounting. The light head can be aimed independently.

Q5: What warranty does Mason offer?
Leona comes with a 5‑year full warranty covering the LED engine, battery, solar panel, and controller. We stand behind our engineering.

Q6: Can I get custom RAL colors?
Absolutely. The standard finish is duck grey (powder coat). We offer custom and factory‑selected colors for large projects to match your urban design.

Q7: How do I program the sensor and dimming schedule?
The system comes pre‑programmed for typical use, but you can adjust parameters using the optional remote control or via Bluetooth dongle (ask our technical team). Settings include detection range, hold time, standby dim level, and time segments.

Conclusion: Leona – Solar Lighting You Can Trust

The Leona Solar Street Light is not just another LED fixture. It’s a complete, integrated system built for real‑world conditions. From the ADC12 housing that resists corrosion, to the DISON LiFePO4 battery that offers years of reliable cycling, to the BridgeLux LEDs that deliver consistent light – every component is chosen for longevity and performance.

Whether you’re lighting a quiet residential street or a busy municipal parking lot, Leona gives you freedom from the grid, lower operating costs, and peace of mind.

Choose Leona. Light the way, sustainably.
