Features
Applications
Warehouse, factory, Production line etc.
Being a part of MASON’s commercial line of products, 200 Watt UFO High Bay Light is capable of providing the best lighting inside the commercial space with high lumen output. Dimming control sensor for occupancy and ambient light level detection.
Polycarbonate lens with reflector options provide glare reduction and aesthetic customization.
Efficacy up to 160lm/w assures you energy savings over traditional high bay luminaires.The more than standard CRI for UFO high bay helps viewing of objects and surfaces with greater clarity and in their true colors in comparison to what they would look without any artificial lighting.
This unique design LED high bay could be used in wet location, IP 65 Water Proof.
This rating means our UFO high bay is protected against dust-tight and water ingress coming through a nozzle made possible through a driver inside the product. .The UFO high bay lighting fixtures come with a big heat sink manufactured out of aluminum for excellent heat dissipation.

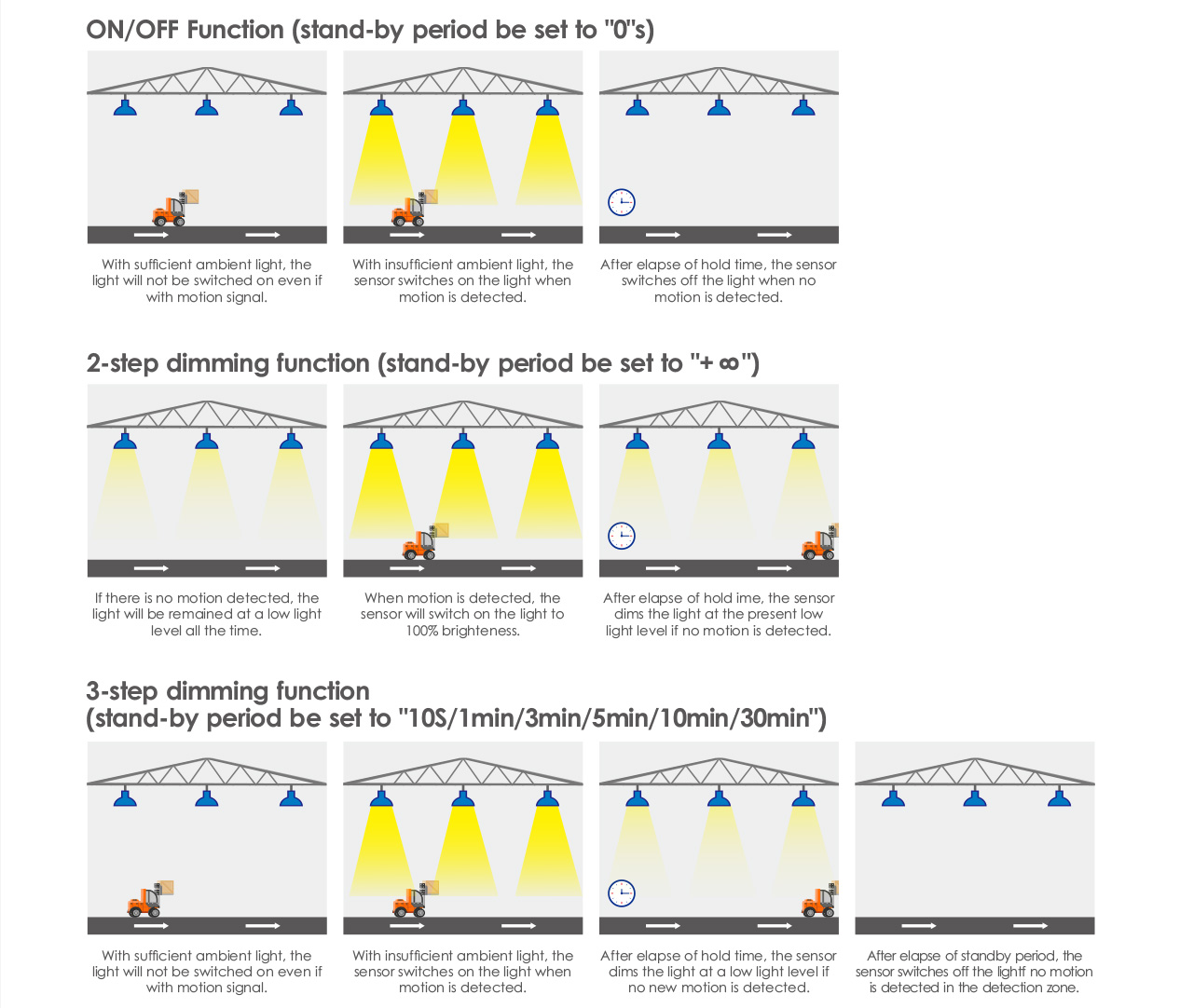

Integrated sensor version is our upgrade technology used for UFO LED high bay. Polar Star is available with integrated sensor and blue-tooth control module, you could easily achieve smart function with a cell phone or a remote control to change dimming modes. You could set up the on-off time, stand by period conveniently, making the working condition more humanized. The motion sensor comes as an accessory and you can choose to have this with our UFO high bay as it helps in alerting you to an intruder especially when you are away.
Light weight construction for easy installation with the built-in hook. Saving your labor cost and construction time for installing. Symmetrical design for consistent installed results. Also save much shipping cost because of the compactdesign.

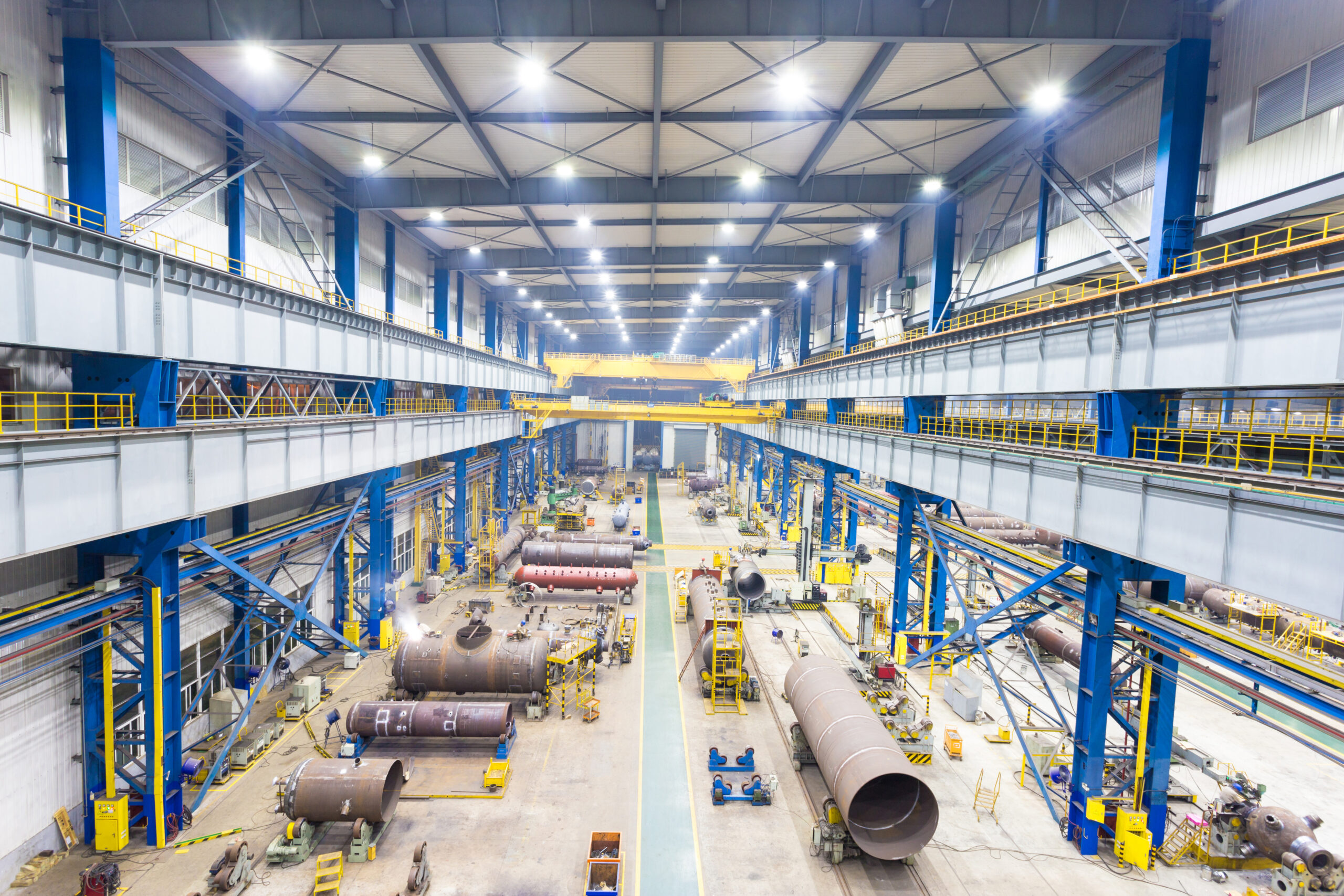

This LED high bay is suitable for a variety of areas including warehouses, gyms, covered outdoor areas, garden centers and mezzanines.
Up to 50,000 hours and with very less lumen depreciation till the end of its lifespan, very low maintenance is needed and hence the costs are .
Technical parameter
| Model No. | Power [W] | Luminous Efficiency | Material | Dimensions [L*W*H mm] | Weight [kg] |
| MS-SP270240 | 240 | 140-180lm/W | Die-casting | 350*350*186 | 4.5 |

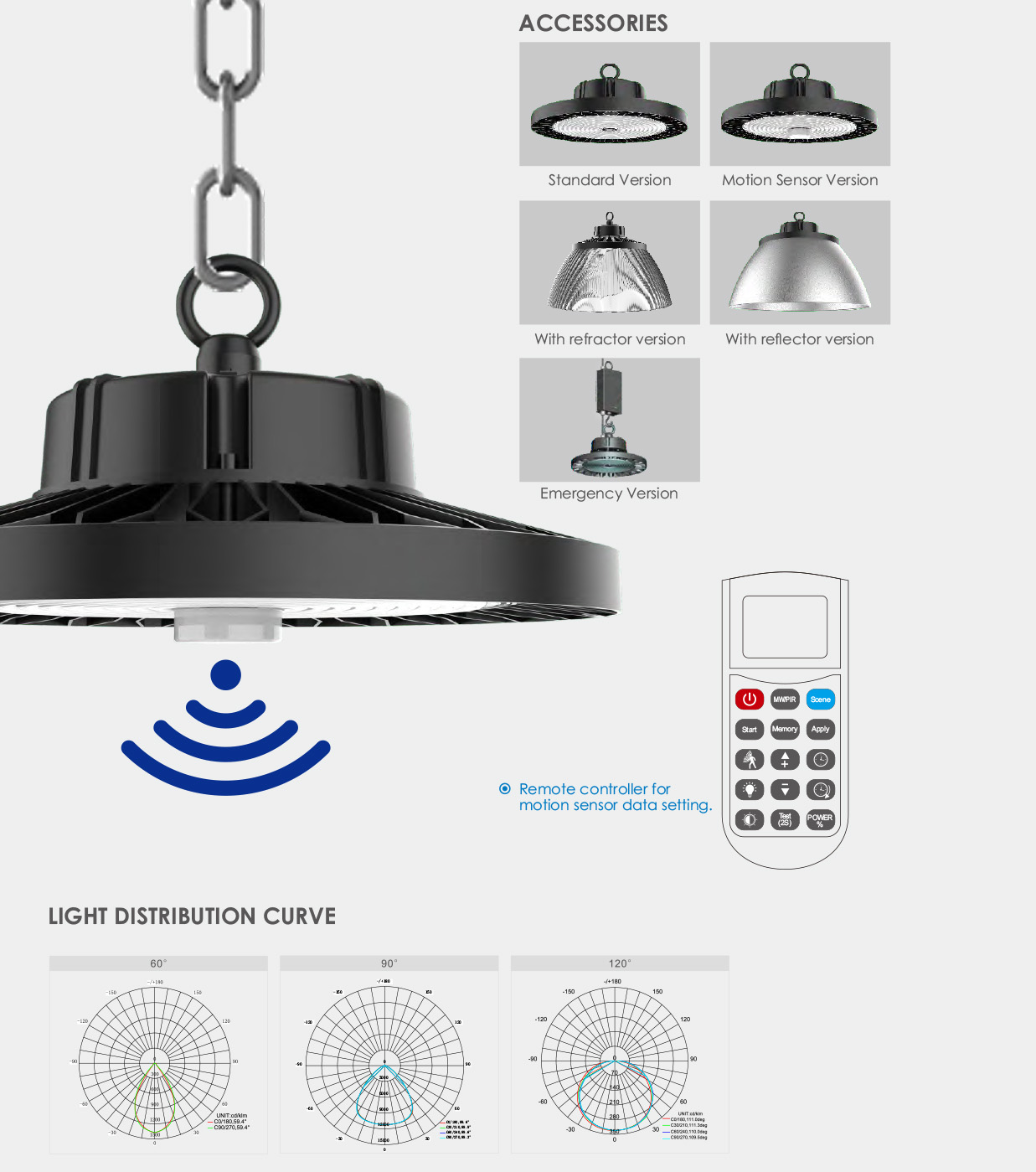

Light Distribution

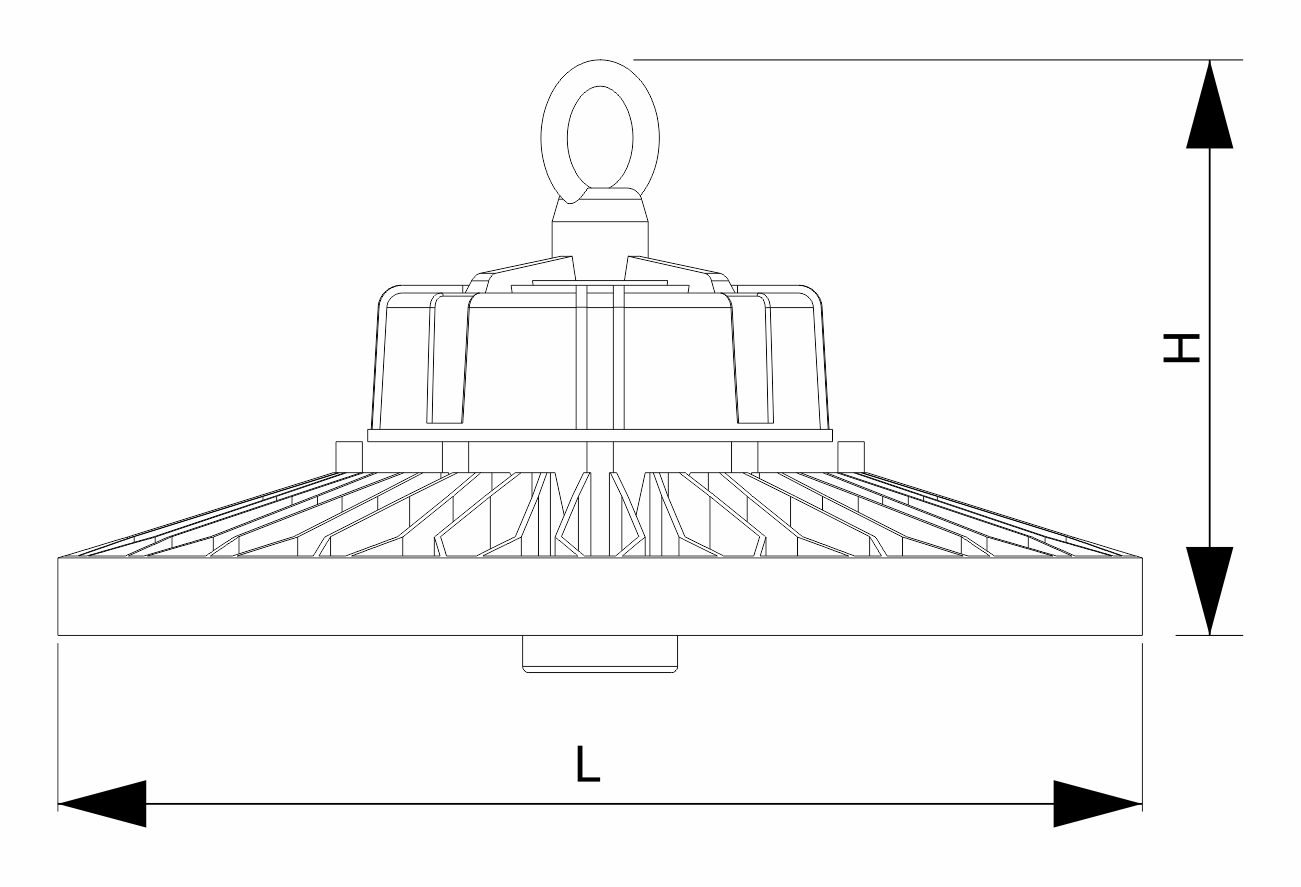

Product Dimension
Most of the LED lighting products can offer 5 years warranty, some may offer 3years or more than 5 years based on exact requirements.
This depends on products type, can talk to our sales team, specify which product you interested, and confirm the MOQ.
7-15 days for standard product samples, some may faster than 7 days if there with stock for finished products or materials.
Most standard products designed with≥50000H.
For new customer, T/T transfer preferred, cooperated customer (30% deposit &70% balance paid before shipment), or and L/C for large QTY order. Can confirm with our sales.
Yes, we can accept ODM orders, also OEM are welcomed.
For outdoor lighting products, most designed with IP rating 65，also IP66 and IP67 for some products with higher requirements, even for IP68 available based on requirements for few items.
We can accept this kind order delivery, but with certain QTY requirements.
Please contact our sales for details.
Street light, LED tunnel lights, LED flood light, LED high bay light, Tri-proof light, etc.
Besides these products, we also accept customized products. We have full skilled R&D team, with more than 100 engineers here.
Normally for industrial lighting products, we use Philips lumiled, OSRAM, CREE, for some products, also used some local good quality LED. And we have our own packed LED lightsource/ components as well, and showed in very good quality and performance.
We have different brand driver for options, like Philips ,Sosen, Meanwell, Inventronics and so on. Customer can appoint the LED driver brands if there with requirement, and we will evaluate the technical aspects to ensure can be used for the specified products.
This depends on the exact products and QTY. Normal orders 3 weeks to 5 weeks if without material stock, if there with raw material stock, can be 2 weeks to 3 weeks.
Most products we got CE / CB approved, and some ENEC approved, not for all.
This negotiable based on projects or requirements.
We can discuss based on exact situation. Some may can offer free samples. go to talk with our sales, let them know your requirements.
