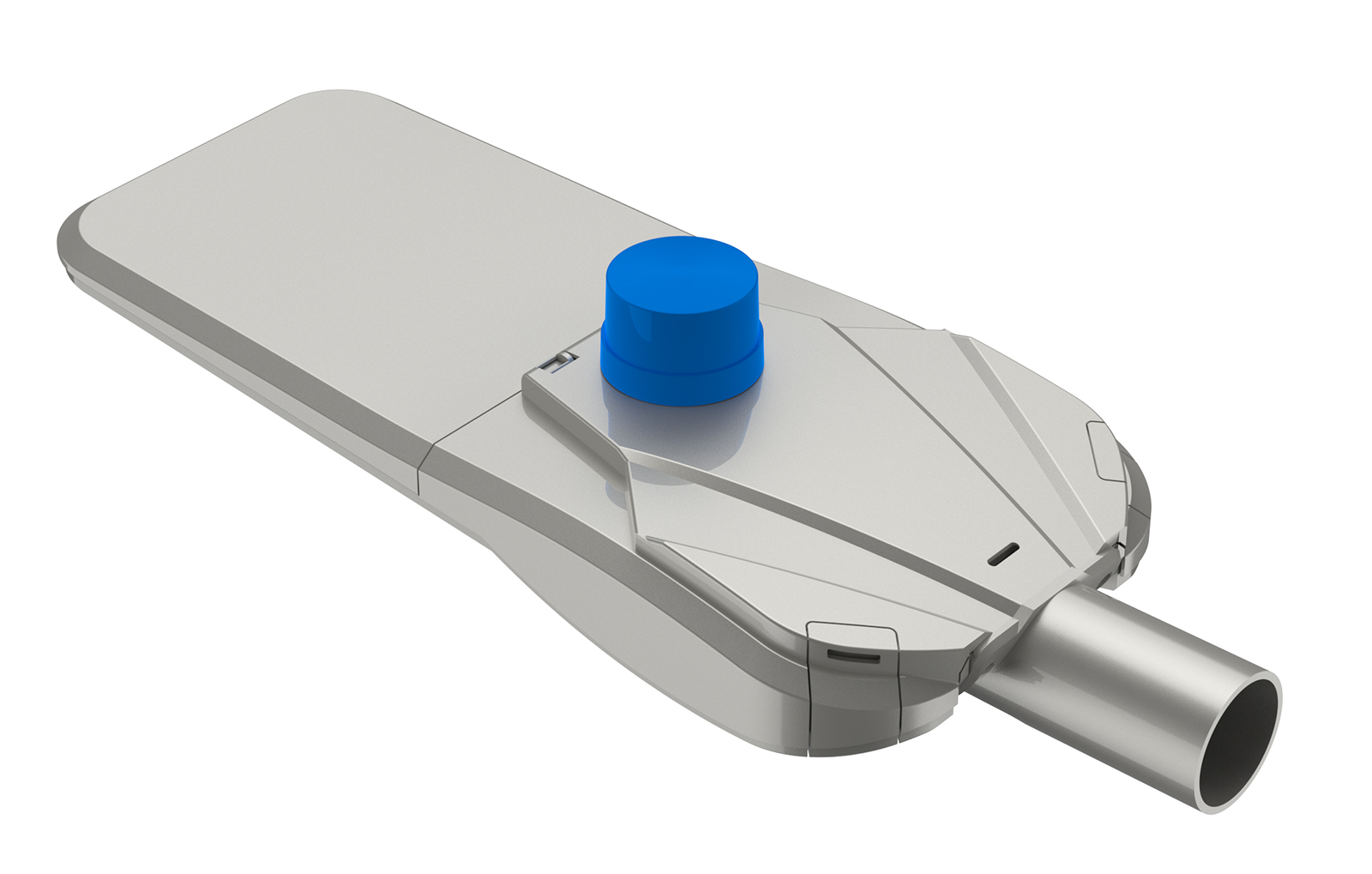

LINOS LED Street Light: Efficient, Durable & Versatile Lighting Solution The LINOS LED Street Light is a high-performance outdoor lighting fixture designed for municipal roads, industrial parks, parking lots, and residential areas. Available in 20W to 300W power ratings and five distinct designs, it offers flexible options to meet diverse lighting needs. Key features include multiple control and connection choices: 3/5/7-pin NEMA sockets or infrared sensors for intelligent operation. For quick deployment, SKD kits (including lenses, glass, covers, and electrical parts) enable fast on-site assembly. All models come with a standard 60mm adjustable spigot, allowing ±20° angle adjustment in 2.5° steps, plus a built-in gradienter for effortless levelling during installation. Engineered for optimal performance, the fixture uses 50x50mm lenses compatible with 2835/3030/5050 LEDs (delivering up to 190 lm/W luminous efficacy). It offers 6-in-1 or 8-in-1 lens options with Type 2/3/4/5 light distributions, ensuring uniform illumination across target areas. The separate electronics and light units enhance heat dissipation, significantly extending the product’s service life. Its smooth, self-cleaning back design reduces maintenance efforts, while tool-free access to drivers via the top cover simplifies inspections and replacements. Compatible with both Class I and Class II LED drivers, the LINOS Street Light supports additional customizations: single light controllers, Zhaga modules, and power switches. Designed around the core concepts of efficiency, durability, and ease of use, it provides reliable, energy-saving lighting for long-term outdoor applications.

1. What Is an LED Street Light?

An LED Street Light is a specialized outdoor lighting fixture that employs Light-Emitting Diodes (LEDs) as its core light source, primarily engineered for illuminating public and private outdoor areas such as roads, sidewalks, parking lots, industrial zones, and residential communities. Distinguished from traditional lighting solutions like high-pressure sodium lamps and metal halide lamps, LED Street Light boasts remarkable advantages that make it the mainstream choice in modern lighting projects. It features exceptional energy efficiency, reducing power consumption by 50% to 70% compared to conventional alternatives; an ultra-long lifespan of 50,000 to 100,000 operating hours, which significantly cuts down replacement frequency; superior light quality with high Color Rendering Index (CRI), no glare or flicker, ensuring safe and comfortable illumination; and lower long-term maintenance costs due to its durable structure. As a green and sustainable lighting option, LED Street Light has become the preferred selection for municipal infrastructure upgrades and large-scale outdoor lighting projects globally, with China standing out as a leading hub for LED Street Light research, development, and production.

2. Features, Benefits, and Reasons to Choose LINOS LED Street Light

2.1 Key Features

Flexible Power & Design Options: Available in a wide power range from 20W to 300W, paired with five distinct design styles, catering to diverse lighting demands across different scenarios.

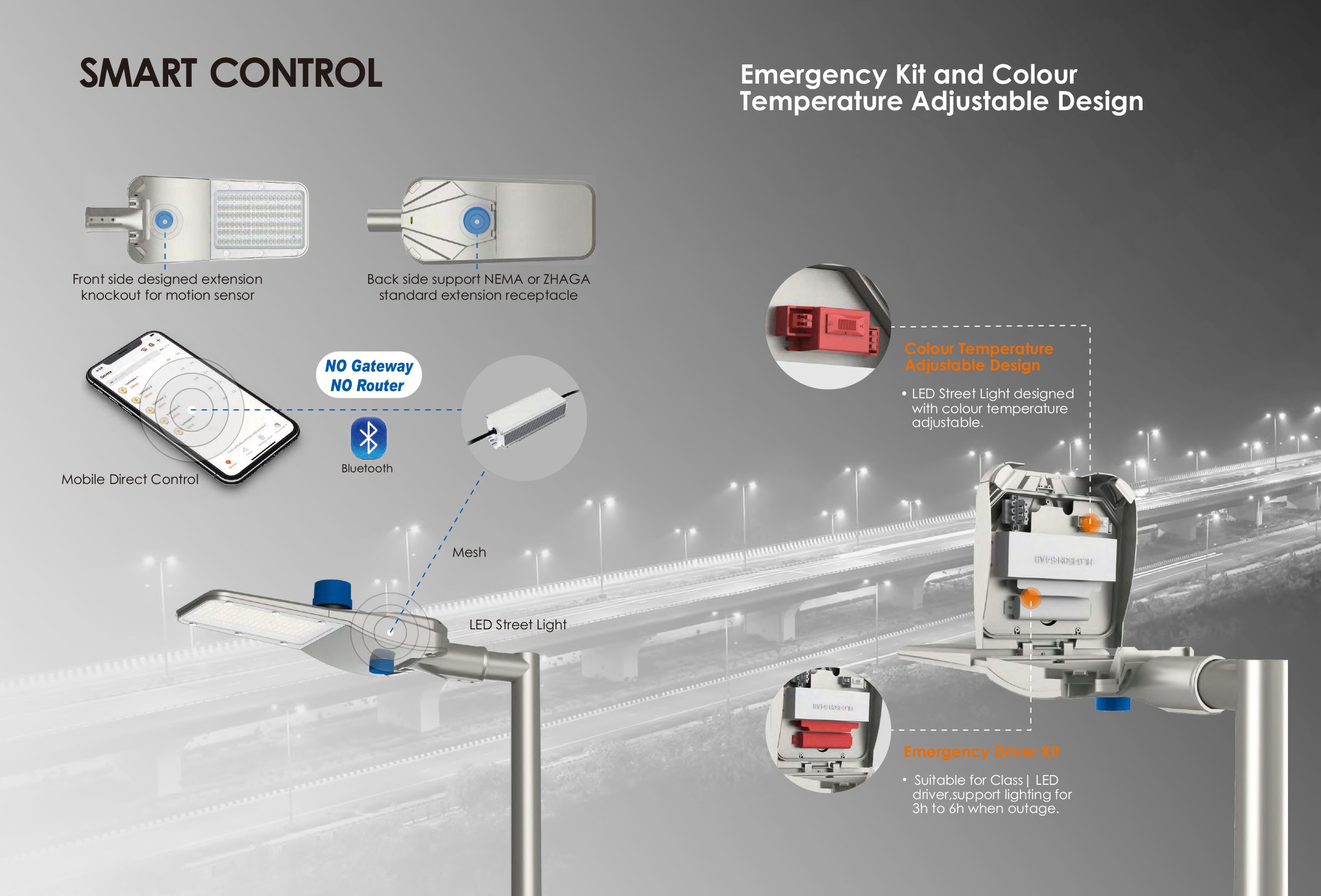

Intelligent Control & Connection: Offers multiple control and connection solutions, including 3/5/7-pin NEMA sockets and infrared sensors, enabling intelligent dimming, on/off control, and energy-saving operation.

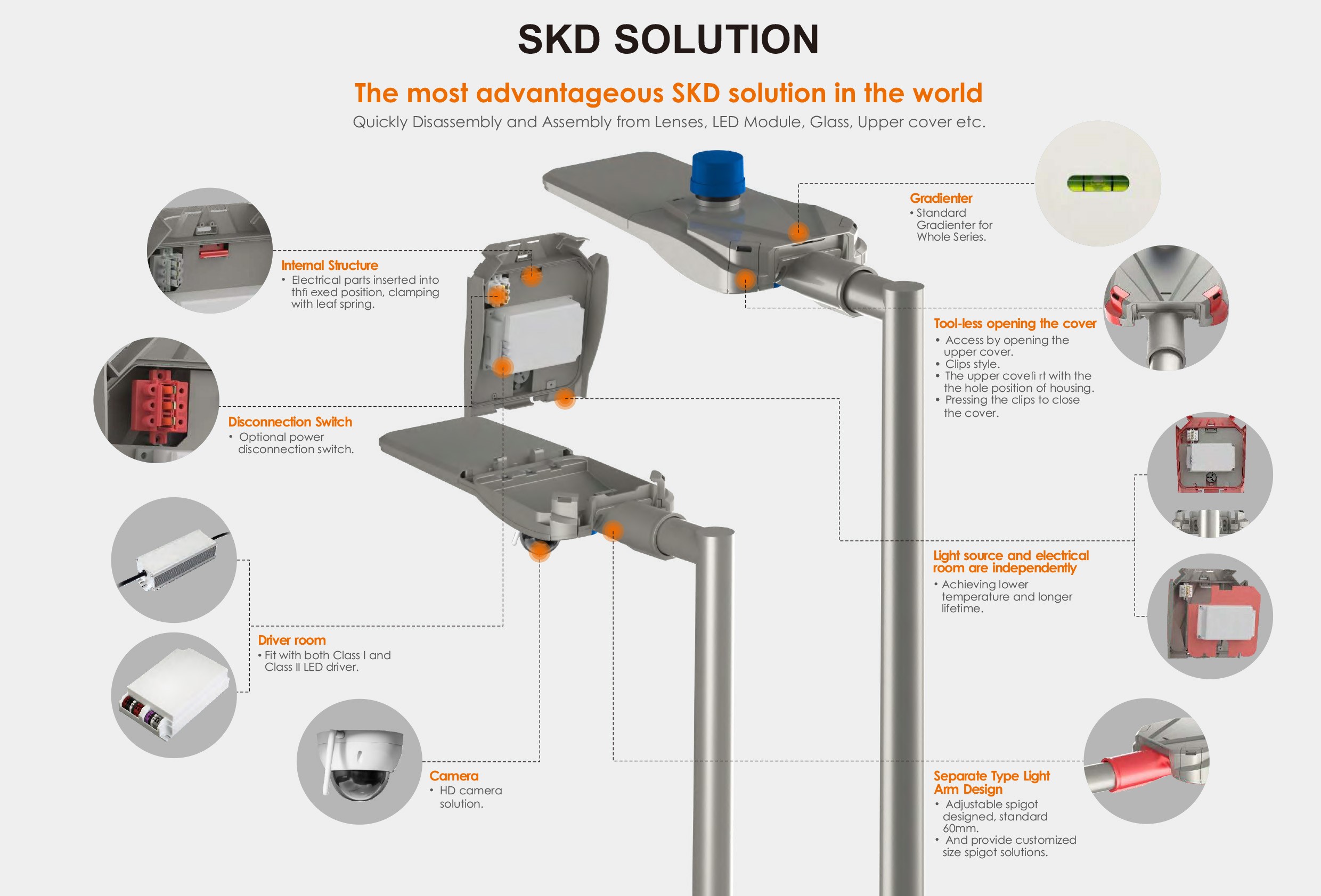

Easy Assembly & Installation: Provides complete SKD kits (comprising lenses, glass covers, and electrical parts) for rapid on-site assembly; all models are equipped with a standard 60mm adjustable spigot, supporting ±20° angle adjustment in 2.5° increments, and a built-in gradienter for effortless and precise levelling during installation.

High Luminous Efficiency: Adopts 50x50mm lenses compatible with 2835/3030/5050 LED chips, delivering luminous efficacy up to 190 lm/W for bright and energy-saving illumination; offers 6-in-1 or 8-in-1 lens options with Type 2/3/4/5 light distributions, ensuring uniform light coverage tailored to various application scenarios.

Durable & Low-Maintenance Design: Features separate electronics and light units to enhance heat dissipation, effectively extending the product’s lifespan; a smooth, self-cleaning back design prevents dust and dirt accumulation, reducing maintenance efforts; tool-free access to drivers via the top cover simplifies inspection and replacement work.

Wide Compatibility & Customization: Compatible with both Class I and Class II LED drivers; supports optional configurations such as single light controllers, Zhaga modules, and power switches to meet specific project requirements.

2.2 Benefits & Reasons to Choose

The LINOS LED Street Light outperforms competitors by integrating efficiency, durability, and user-friendliness, making it an ideal choice for various outdoor lighting projects. Firstly, its high luminous efficacy (up to 190 lm/W) ensures significant energy savings, lowering long-term electricity costs for municipalities, businesses, and property managers. Secondly, the independent heat dissipation system composed of separate electronics and light units effectively reduces operating temperature, prolonging the product’s lifespan and minimizing replacement and maintenance expenses. Thirdly, the flexible assembly and installation features, such as SKD kits and adjustable spigots, simplify on-site construction, saving time and labor costs. Unlike ordinary LED Street Lights, the LINOS model offers abundant customization options, including intelligent controllers and Zhaga modules, to adapt to specific project needs such as smart city construction. Moreover, as a premium product from a professional China manufacturer, it adheres to strict international quality standards and undergoes rigorous testing, ensuring stable performance even in harsh outdoor environments. Choosing LINOS LED Street Light means investing in a sustainable, cost-effective, and high-performance lighting solution that delivers long-term value.

3. Buying Guide for LINOS LED Street Light

Determine Power Requirements: Assess the lighting area (e.g., road width, parking lot size) and required brightness to select the appropriate power model within the 20W-300W range. For main roads with heavy traffic, higher power models (150W-300W) are recommended; for residential areas or narrow sidewalks, lower power models (20W-100W) are sufficient to provide soft and comfortable illumination.

Confirm Light Distribution Type: Select the suitable lens type (6-in-1 or 8-in-1) and light distribution (Type 2/3/4/5) based on the application scenario. Type 2/3 light distributions are ideal for narrow roads, sidewalks, or residential communities; Type 4/5 are suitable for wide main roads, large parking lots, or open industrial areas to ensure comprehensive light coverage.

Check Driver Compatibility: Verify that the selected LINOS LED Street Light model is compatible with your existing LED drivers (Class I or Class II). If custom driver solutions are needed, consult the supplier to ensure matching performance and safety.

Evaluate Installation Requirements: If fast on-site assembly is a priority, confirm that the supplier provides complete SKD kits (including all necessary components like lenses and electrical parts). For projects requiring angle adjustment, ensure the standard 60mm adjustable spigot and built-in gradienter are included to facilitate installation.

Select a Reputable Supplier: Choose an experienced China-based manufacturer specializing in LED Street Light production. Prioritize suppliers with complete product certifications (e.g., CE, RoHS, IEC) and reliable after-sales service to guarantee product quality and timely technical support.

Discuss Customization Options: If the project requires intelligent control or specific module compatibility, communicate with the supplier about optional features such as single light controllers, Zhaga modules, or power switches to obtain a tailored solution.

4. Key Considerations When Selecting LED Street Lights

Selecting the right LED Street Light is crucial for ensuring lighting quality, energy efficiency, and long-term reliability. When making a selection, the following key factors should be taken into account:

Protective Grade: For outdoor applications, the LED Street Light must have a high Ingress Protection (IP) rating (preferably IP65 or above) to resist rain, dust, humidity, and other harsh environmental factors. The LINOS LED Street Light features a sealed design and high-quality materials, meeting strict IP protection standards to ensure stable operation in outdoor environments.

Heat Dissipation Performance: Poor heat dissipation can significantly reduce the lifespan of LED chips and affect lighting efficiency. Prioritize models with efficient heat dissipation structures, such as the LINOS LED Street Light’s separate electronics and light units, or those equipped with high-quality heat sinks, to ensure stable performance during long-term operation.

Light Quality: Pay attention to color temperature and color rendering index (CRI). For street lighting, a color temperature of 3000K-5000K is recommended, as it provides clear visibility without causing eye fatigue. A CRI of ≥ 70 is required to ensure accurate color rendering of objects. The LINOS LED Street Light uses high-quality LED chips to meet these light quality standards.

Material Durability: Choose LED Street Lights made of high-quality, corrosion-resistant, and anti-oxidation materials (such as aluminum alloy). This is particularly important for coastal areas, industrial zones, or other harsh environments where the fixture may be exposed to salt spray, chemicals, or extreme temperatures. The LINOS LED Street Light’s housing is made of durable materials to ensure long-term use.

Intelligent Functions: For smart city projects or scenarios requiring energy-saving management, select LED Street Lights with intelligent functions such as infrared sensors, dimming capabilities, or compatibility with IoT controllers. These features enable automatic adjustment of light intensity based on pedestrian/vehicle flow, achieving further energy savings and remote management. The LINOS LED Street Light offers optional intelligent control modules to meet these needs.

Certifications & Compliance: Ensure the LED Street Light meets international standards (e.g., IEC, DLC) and local regulations to avoid quality and safety risks. A reliable manufacturer will provide complete certification documents, confirming the product’s quality and compliance. The LINOS LED Street Light, produced by a professional China manufacturer, holds all necessary certifications.

5. Layout Design for Road Lighting with LINOS LED Street Light

Scientific and reasonable layout design is essential to maximize the lighting effect of LED Street Lights, ensure uniform illumination, eliminate dark areas, and improve road safety. The following principles and methods are applicable to the layout design of LINOS LED Street Light:

Determine Installation Height: The installation height should be matched according to the road width and the power of the LINOS LED Street Light. For 20W-50W models used in residential roads (width ≤ 6m), the recommended installation height is 5-6m; for 100W-200W models used in secondary roads (width 6-12m), the installation height is 6-8m; for 200W-300W models used in main roads (width ≥ 12m), the installation height should be 8-12m to ensure comprehensive light coverage.

Set Installation Spacing: The spacing between LINOS LED Street Lights should be 1.2-1.5 times the installation height. For example, if the installation height is 8m, the spacing should be 9.6-12m. This spacing ensures uniform illumination without overlapping or dark areas, optimizing energy efficiency and lighting effect.

Adjust Light Angle: Utilize the ±20° adjustable spigot of the LINOS LED Street Light to direct light to the target area. For one-sided installation (narrow roads), adjust the angle to 15-20° towards the road; for two-sided installation (wide roads), adopt symmetric angles to avoid light waste and ensure uniform illumination across the entire road surface.

Match Light Distribution: Select the appropriate light distribution type based on the road shape. For straight roads, Type 3/4 light distributions are recommended; for intersections, roundabouts, or large open areas, Type 5 light distributions are more suitable. The LINOS LED Street Light’s 6-in-1/8-in-1 lenses allow flexible matching of light distributions to meet different layout needs.

Consider Special Areas: For intersections, curves, pedestrian crossings, or other areas requiring enhanced visibility, reduce the installation spacing by 20-30% or increase the power of the LINOS LED Street Light to improve brightness and safety. Use the built-in gradienter to ensure all fixtures are level, guaranteeing consistent light distribution.

6. Application Scenarios and Environmental Adaptability

6.1 Application Scenarios

With its flexible design, reliable performance, and wide power range, the LINOS LED Street Light is widely applicable to various outdoor lighting scenarios. The specific application scenarios and recommended models are as follows:

Municipal Roads: Suitable for main roads, secondary roads, urban streets, and county roads. It is recommended to use 150W-300W LINOS LED Street Light models with Type 4/5 light distributions to ensure sufficient brightness and wide coverage for heavy traffic.

Residential Areas: Applicable to residential communities, residential streets, and courtyard roads. 20W-100W models with Type 2/3 light distributions are preferred, as they provide soft and comfortable illumination without disturbing residents’ rest.

Industrial & Commercial Areas: Ideal for industrial parks, factories, large parking lots, and shopping mall peripheries. 100W-200W models with high IP ratings are recommended to adapt to the complex environment of industrial and commercial areas and meet the high-brightness lighting needs of work and parking spaces.

Public Facilities: Suitable for parks, squares, pedestrian paths, and scenic spots. 50W-150W models with adjustable angles are recommended, allowing customized illumination for different landscapes and pedestrian areas to create a safe and pleasant lighting environment.

Special Areas: Applicable to ports, docks, highway rest areas, and other areas with harsh environments. 200W-300W models with corrosion-resistant materials and strong light penetration are recommended to ensure stable operation in salt spray, high humidity, or strong wind environments.

6.2 Environmental Influences & Adaptability

Outdoor environments vary greatly, and different environmental factors can affect the performance and lifespan of LED Street Lights. The LINOS LED Street Light is specially engineered to adapt to various harsh environments, ensuring stable operation in different conditions:

High-Temperature Environments (e.g., deserts, southern China in summer): The separate electronics and light units of the LINOS LED Street Light enhance heat dissipation efficiency, preventing overheating of internal components and ensuring stable luminous efficacy. The smooth back design also facilitates heat conduction, reducing the impact of high temperatures on the product.

Humid/Rainy Environments (e.g., coastal areas, rainy seasons): The sealed structure and high-quality waterproof materials of the LINOS LED Street Light effectively resist water and humidity intrusion, avoiding short circuits and component damage. The self-cleaning back design prevents the accumulation of rainwater and dust, maintaining the fixture’s performance.

Dusty/Industrial Environments (e.g., construction sites, factories): The dustproof design and durable housing of the LINOS LED Street Light prevent dust and industrial pollutants from entering the internal components. Tool-free access to drivers allows for easy cleaning and maintenance, ensuring long-term reliable operation.

Cold Environments (e.g., northern China, high-altitude areas): The LINOS LED Street Light uses low-temperature-resistant LED chips and drivers, which can start and operate normally in the temperature range of -20℃ to 60℃, without being affected by low temperatures.

Strong Wind Environments (e.g., coastal areas, mountain roads): The streamlined design of the LINOS LED Street Light reduces wind resistance, and the sturdy 60mm spigot ensures stable installation without shaking or falling, even in strong wind conditions.

Frequently Asked Questions (FAQs)

Q1: Why is choosing an LED Street Light from a China manufacturer a wise decision?

A1: China is a global leader in the LED Street Light industry, boasting advanced manufacturing technology, a complete industrial chain, and mature production experience. A China manufacturer can provide high-quality LED Street Lights at competitive prices due to economies of scale and efficient production processes. Additionally, reputable China suppliers offer flexible customization services to meet specific project requirements, along with comprehensive after-sales support and technical guidance. Choosing an LED Street Light from a China manufacturer ensures you get a cost-effective, reliable product backed by professional service.

Q2: What is the lifespan of the LINOS LED Street Light, and how does the manufacturer ensure its durability?

A2: The LINOS LED Street Light has a lifespan of up to 50,000 hours. The China manufacturer ensures its durability through multiple advanced designs and high-quality materials: adopting separate electronics and light units for efficient heat dissipation, which is key to extending LED lifespan; using premium 2835/3030/5050 LED chips with 190 lm/W efficacy that are resistant to aging; and selecting corrosion-resistant, anti-oxidation aluminum alloy for the housing. All LINOS LED Street Lights undergo strict quality testing, including high-temperature, low-temperature, and waterproof tests, before leaving the factory. The manufacturer also provides a warranty to ensure customers’ peace of mind, making this LED Street Light a durable investment for long-term use.

Q3: Can I get customized LED Street Light solutions from your China supplier?

A3: Yes, our China supplier specializes in providing customized LED Street Light solutions for the LINOS series. Whether you need to adjust the power (20W-300W), select specific light distributions (Type 2/3/4/5), or add optional features like single light controllers, Zhaga modules, or power switches, our supplier can tailor the product to your project’s unique needs. The professional team of the China manufacturer will communicate closely with you to understand your requirements, conduct technical analysis, and deliver a personalized solution. This customization capability makes our LED Street Light suitable for a wide range of scenarios, from municipal projects to industrial and residential applications.

Q4: What factors should I consider when choosing a supplier for LED Street Lights?

A4: When selecting a supplier for LED Street Lights, the following key factors are essential: 1) The supplier’s reputation and the manufacturer’s experience in the LED industry—prioritize those with a proven track record in producing high-quality LED Street Lights. 2) Product quality and certifications: Ensure the LED Street Light meets international standards (CE, RoHS, IEC) and has complete test reports. 3) Customization capabilities: Choose a supplier that can provide tailored solutions to meet your specific project needs. 4) Pricing and after-sales service: A reliable supplier offers reasonable prices, a comprehensive warranty, and timely technical support. 5) Production capacity and delivery time: Ensure the supplier can meet your order quantity and delivery schedule. Our China supplier excels in all these aspects, providing customers with high-quality LED Street Light products and professional services.

Q5: Is the LINOS LED Street Light suitable for harsh outdoor environments in China, and does the supplier provide local support?

A5: Absolutely. The LINOS LED Street Light is specifically designed and tested to adapt to various harsh outdoor environments across China, including high temperatures in southern China, cold winters in northern China, humid coastal areas, and dusty industrial zones. It features a high IP rating for water and dust resistance, efficient heat dissipation, and low-temperature-resistant components, ensuring stable performance in all these conditions. Our China supplier provides comprehensive local support, including on-site installation guidance, maintenance services, and technical consultation. If you encounter any issues during use, the supplier’s after-sales team will respond promptly to resolve them. Choosing this LED Street Light from our China supplier ensures you get a product that fits China’s diverse environments and reliable local support.

Q6: How does the LINOS LED Street Light help save energy compared to traditional street lights?

A6: The LINOS LED Street Light achieves significant energy savings by using high-efficiency LED chips (up to 190 lm/W) and intelligent control options (infrared sensors, single light controllers). Compared to traditional high-pressure sodium lamps, it reduces power consumption by 50-70%. For example, a 100W LINOS LED Street Light can replace a 250W sodium lamp while providing the same or better illumination. This not only lowers electricity costs but also reduces carbon emissions, making it an eco-friendly choice. As a professional manufacturer, we prioritize energy efficiency in our LED Street Light designs, helping customers achieve sustainable development goals.
